True BASIC Program to Find a Function Minimum

Using the ModifiedNewton's Method

by Namir Shammas

The following program uses the modified Newton's method to find the minimum of a function . The modification part performs a linear search on the calculated guess refinement. This search further improves the refined values for the optimum.

The program prompts you to enter for each variable (i.e. dimension):

1. The maximum number of iterations.

2. The initial guesses for the optimum point for each variable.

3. The tolerance values for each variable.

The program displays intermediate values for the function and the variables. The program displays the following final results:

1. The coordinates of the minimum point.

2. The minimum function value.

3. The number of iterations

The current code finds the minimum for the following function:

f(x1,x2) =100 * (x1) ^ 2 - x2) ^ 2 + (1 - x1) ^ 2

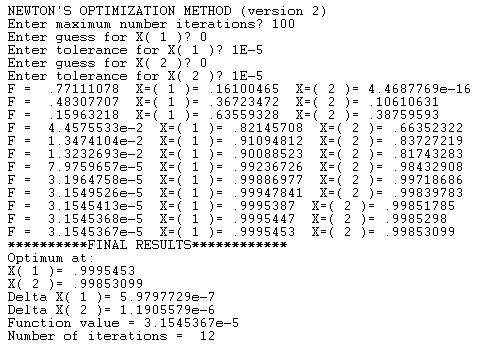

Here is a sample session to solve for the optimum of the above function:

Here is the BASIC listing:

! Basic Newton's Method for Optimization
!---------------------------------------------------------------------------
!
! This program implements the Modified Newton Method that uses a line search
! step to improve the refined guess. As a result, this method can solve the
! Rosenbrook function in contrast with the pure Newton Method which cannot.
!
!---------------------------------------------------------------------------


OPTION TYPO
OPTION NOLET

DECLARE NUMERIC MAX_VARS
DECLARE NUMERIC N, I, F, Lambda
DECLARE NUMERIC EPSF, fNorm
DECLARE NUMERIC Iter, MaxIter
DECLARE NUMERIC bStop, bOK, bTrue, bFalse

Dim X(1), g(1,1)
Dim Toler(1)
Dim DeltaX(1), J(1, 1)
Dim Index(1)

MAX_VARS = 2
bTrue = 1
bFalse = 0

SUB MyFx(X(), N, Res)
  Res = 100 * (X(1) ^ 2 - X(2)) ^ 2 + (1 - X(1)) ^ 2
  !Res = X(1) - X(2) + 2 * X(1) ^ 2 + 2 * X(1) * X(2) + X(2) ^ 2
END SUB

SUB MyFxEx(N,X(),DeltaX(), Lambda, funRes)
  LOCAL  I
  Dim XX(1)
  MAT REDIM XX(N)

  For I = 1 To N
    XX(I) = X(I) + Lambda * DeltaX(I)
  Next I

  CALL MyFx(XX, N, funRes)
END SUB

SUB LinSearch_DirectSearch(X(), N, Lambda, DeltaX(), boolRes)
  LOCAL MAX_ITER, TOLER
  LOCAL Iter, h, Diff, F0, Fp, Fm, Deriv1, Deriv2

  MAX_ITER = 100
  TOLER = 0.000001
  boolRes = bTrue

  Iter = 0
  Do
    Iter = Iter + 1
    If Iter > MAX_ITER Then
      boolRes = bFalse
      Exit SUB
    End If
    h = 0.01 * (1 + Abs(Lambda))
    CALL MyFxEx(N, X, DeltaX, Lambda, F0)
    CALL MyFxEx(N, X, DeltaX, Lambda + h, Fp)
    CALL MyFxEx(N, X, DeltaX, Lambda - h, Fm)
    Deriv1 = (Fp - Fm) / 2 / h
    Deriv2 = (Fp - 2 * F0 + Fm) / h ^ 2
    If Deriv2 = 0 Then Exit SUB
    Diff = Deriv1 / Deriv2
    Lambda = Lambda - Diff
  Loop Until Abs(Diff) < TOLER
END SUB

SUB FirstDeriv(N, X(), iVar, funRes)
  LOCAL Xt, h, Fp, Fm

  Xt = X(iVar)
  h = 0.01 * (1 + Abs(Xt))
  X(iVar) = Xt + h
  CALL MyFx(X, N, Fp)
  X(iVar) = Xt - h
  CALL MyFx(X, N, Fm)
  X(iVar) = Xt
  funRes = (Fp - Fm) / 2 / h
END SUB

SUB SecondDeriv(N, X(), iVar, jVar, funRes)
  LOCAL Xt, Yt,HX, HY,F0, Fp, Fm
  LOCAL Fpp, Fmm, Fpm, Fmp

  ! calculate second derivative?
  If iVar = jVar Then
    CALL MyFx(X, N, F0)
    Xt = X(iVar)
    HX = 0.01 * (1 + Abs(Xt))
    X(iVar) = Xt + HX
    CALL MyFx(X, N, Fp)
    X(iVar) = Xt - HX
    CALL MyFx(X, N, Fm)
    X(iVar) = Xt
    funRes = (Fp - 2 * F0 + Fm) / HX ^ 2
  Else
    Xt = X(iVar)
    Yt = X(jVar)
    HX = 0.01 * (1 + Abs(Xt))
    HY = 0.01 * (1 + Abs(Yt))
    ! calculate Fpp
    X(iVar) = Xt + HX
    X(jVar) = Yt + HY
    CALL MyFx(X, N, Fpp)
    ! calculate Fmm
    X(iVar) = Xt - HX
    X(jVar) = Yt - HY
    CALL MyFx(X, N, Fmm)
    ! calculate Fpm
    X(iVar) = Xt + HX
    X(jVar) = Yt - HY
    CALL MyFx(X, N, Fpm)
    ! calculate Fmp
    X(iVar) = Xt - HX
    X(jVar) = Yt + HY
    CALL MyFx(X, N, Fmp)
    X(iVar) = Xt
    X(jVar) = Yt
    funRes = (Fpp - Fmp - Fpm + Fmm) / (4 * HX * HY)
  End If
END SUB


SUB GetFirstDerives(N, X(), FirstDerivX(,))

  LOCAL I

  For I = 1 To N
    CALL FirstDeriv(N, X, I, FirstDerivX(I,1))
  Next I
END SUB

SUB GetSecondDerives(N, X(), SecondDerivX(,))

  LOCAL I, J


  For I = 1 To N
    For J = 1 To N
      CALL SecondDeriv(N, X, I, J, SecondDerivX(I, J))
    Next J
  Next I
END SUB

! Basic Newton's Method for Optimization

N = MAX_VARS

MAT REDIM X(N), g(N,1)
MAT REDIM Toler(N)
MAT REDIM DeltaX(N), J(N, N)
MAT REDIM Index(N)

PRINT "NEWTON'S OPTIMIZATION METHOD (version 2)"
! INPUT PROMPT "Enter function tolerance  value? ": epsf
INPUT PROMPT "Enter maximum number iterations? ": MaxIter

For I = 1 To N
  PRINT "Enter guess for X(";I;")";
  INPUT X(I)
  PRINT "Enter tolerance for X(";I;")";
  INPUT Toler(I)
Next I


Iter = 0
Do
  Iter = Iter + 1
  If Iter > MaxIter Then
    PRINT "Reached maximum iterations limit"
    Exit Do
  End If

  CALL GetFirstDerives(N, X, g)

  ! test if gradient is shallow enough
  fNorm = 0
  For I = 1 To N
    fNorm = fNorm + g(I,1)^2
  Next I
  fNorm = Sqr(fNorm)
  ! If fNorm < EPSF Then Exit Do

  CALL GetSecondDerives(N, X, J)

  MAT J = INV(J)
  MAT g = J * g

  For I = 1 To N
    DeltaX(I) = g(I,1)
  Next I

  Lambda = 0.1
  CALL LinSearch_DirectSearch(X, N, Lambda, DeltaX, bOK)
  If bOK = bFalse Then
    PRINT "Linear Search failed"
    Exit Do
  End If

  For I = 1 To N
    DeltaX(I) = Lambda * DeltaX(I)
    X(I) = X(I) + DeltaX(I)
  Next I


  bStop = bTrue
  For I = 1 To N
    If Abs(DeltaX(I)) > Toler(I) Then
      bStop = bFalse
      Exit For
    End If
  Next I

  CALL MyFx(X, N, F)
  PRINT "F = ";F;" ";
  For I = 1 To N
    PRINT "X=(";I;")=";X(I);" ";
  Next I
  PRINT

Loop Until bStop = bTrue

CALL MyFx(X, N, F)
PRINT "**********FINAL RESULTS************"
PRINT "Optimum at:"
For I = 1 To N
  PRINT "X(";I;")=";X(I)
Next I
For I = 1 To N
  PRINT "Delta X(";I;")=";DeltaX(I)
Next I
PRINT "Function value ="; F
PRINT "Number of iterations = ";Iter

END
