The following program uses the Davidson-Fletcher-Powell (DFP) method to find the minimum of a function. This method is a quasi-Newton method. That is, the DFP algorithm is based on Newton's method but performs different calculations to update the guess refinements.
The program prompts you to enter for each variable (i.e. dimension):
1. The maximum number of iterations.
2. The tolerance for the minimized function,
3. The tolerance for the gradient.
4. The initial guesses for the optimum point for each variable.
5. The tolerance for the guess refinement for each variable.
The program displays intermediate values for the function and the variables. The program displays the following final results:
1. The coordinates of the minimum point.
2. The minimum function value.
3. The number of iterations
The current code finds the minimum for the following function:
f(x1,x2) = x1 - x2 + 2 * x1 ^ 2 + 2 * x1 * x2 + x2 ^ 2

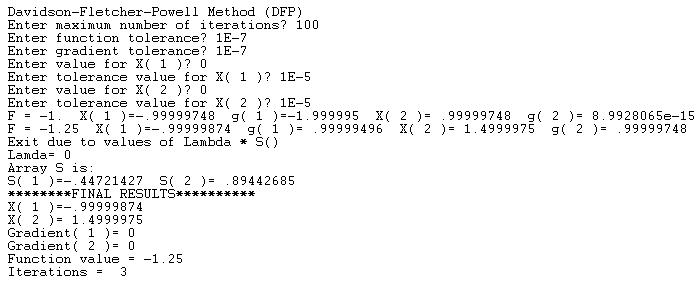

Here is a sample session to solve for the optimum of the above function:
Here is the BASIC listing:
! Davidson-Fletcher-Powell Method (DFP)
OPTION TYPO
OPTION NOLET
DECLARE NUMERIC MAX_VARS
DECLARE NUMERIC N, I, EPSF, EPSG, fNorm, Lambda
DECLARE NUMERIC Iter, MaxIter, F
DECLARE NUMERIC bStop, bOK, boolRes, bTrue, bFalse
Dim X(1), grad1(1,1), grad2(1,1), g(1,1), S(1,1)
Dim d(1,1), Bmat(1,1), Mmat(1,1), Nmat(1,1)
Dim MM1(1,1), MM2(1,1), MM3(1,1), MM4(1,1)
Dim VV1(1,1), Toler(1)
bTrue = 1
bFalse = 0
SUB CalcNorm(X(,), N, FNorm)
LOCAL I
FNorm = 0
For I = 1 To N
FNorm = FNorm + X(I,1)^2
Next I
FNorm = Sqr(FNorm)
END SUB
SUB MyFx(X(), N, Res)
! Res = 100 * (X(1) ^ 2 - X(2)) ^ 2 + (1 - X(1)) ^ 2
Res = X(1) - X(2) + 2 * X(1) ^ 2 + 2 * X(1) * X(2) + X(2) ^ 2
End SUB
SUB FirstDeriv(N, X(), iVar, funRes)
LOCAL Xt, h, Fp, Fm
Xt = X(iVar)
h = 0.01 * (1 + Abs(Xt))
X(iVar) = Xt + h
CALL MyFx(X, N, Fp)
X(iVar) = Xt - h
CALL MyFx(X, N, Fm)
X(iVar) = Xt
funRes = (Fp - Fm) / 2 / h
End SUB
Sub GetFirstDerives(N, X(), FirstDerivX(,))
LOCAL I
For I = 1 To N
CALL FirstDeriv(N, X, I, FirstDerivX(I,1))
Next I
End Sub
SUB MyFxEx(N, X(), DeltaX(,), Lambda, funRes)
LOCAL I, XX(1)
!Dim XX()
MAT REDIM XX(N)
For I = 1 To N
XX(I) = X(I) + Lambda * DeltaX(I,1)
Next I
CALL MyFx(XX, N, funRes)
End SUB
SUB LinSearch_DirectSearch(X(), N, Lambda, DeltaX(,), InitStep, MinStep, boolRes)
LOCAL F1, F2
CALL MyFxEx(N, X, DeltaX, Lambda, F1)
Do
CALL MyFxEx(N, X, DeltaX, Lambda + InitStep, F2)
If F2 < F1 Then
F1 = F2
Lambda = Lambda + InitStep
Else
CALL MyFxEx(N, X, DeltaX, Lambda - InitStep, F2)
If F2 < F1 Then
F1 = F2
Lambda = Lambda - InitStep
Else
! reduce search step size
InitStep = InitStep / 10
End If
End If
Loop Until InitStep < MinStep
boolRes = bTrue
End SUB
! Davidson-Fletcher-Powell Method (DFP)
MAX_VARS = 2
N = MAX_VARS
MAT REDIM Toler(MAX_VARS)
MAT REDIM X(MAX_VARS)
MAT REDIM grad1(MAX_VARS,1)
MAT REDIM grad2(MAX_VARS,1)
MAT REDIM g(MAX_VARS,1)
MAT REDIM S(MAX_VARS,1)
MAT REDIM d(MAX_VARS,1)
MAT REDIM Bmat(MAX_VARS, MAX_VARS)
MAT REDIM Mmat(MAX_VARS, MAX_VARS)
MAT REDIM Nmat(MAX_VARS, MAX_VARS)
MAT REDIM MM1(MAX_VARS, 1)
MAT REDIM MM2(MAX_VARS, MAX_VARS)
MAT REDIM MM3(MAX_VARS, MAX_VARS)
MAT REDIM MM4(MAX_VARS, MAX_VARS)
MAT REDIM VV1(MAX_VARS,1)
PRINT "Davidson-Fletcher-Powell Method (DFP)"
INPUT PROMPT "Enter maximum number of iterations? ": MaxIter
INPUT PROMPT "Enter function tolerance? ": EPSF
INPUT PROMPT "Enter gradient tolerance? ": EPSG
N = MAX_VARS
For I = 1 To N
PRINT "Enter value for X(";I;")";
INPUT X(I)
PRINT "Enter tolerance value for X(";I;")";
INPUT Toler(I)
Next I
! set matrix B as an indentity matrix
MAT Bmat = IDN(MAX_VARS)
Iter = 0
! calculate initial gradient
CALL GetFirstDerives(N, X, grad1)
! start main loop
Do
Iter = Iter + 1
If Iter > MaxIter Then
PRINT "Reached iteration limits"
Exit Do
End If
! calcuate vector S() and reverse its sign
MAT S = Bmat * grad1
MAT S = (-1) * S
! normailize vector S
CALL CalcNorm(S, N, fNorm)
MAT S = (1/fNorm) * S ! objML.NormalizeVect S
Lambda = 0.1
CALL LinSearch_DirectSearch(X, N, Lambda, S, 0.1, 0.00001, boolRes)
! calculate optimum X() with the given Lambda
MAT d = (Lambda) * S
For I = 1 To N
X(I) = X(I) + d(I,1)
Next I
! get new gradient
CALL GetFirstDerives(N, X, grad2)
! calculate vector g() and shift grad2() into grad1()
MAT g = grad2 - grad1
MAT grad1 = grad2
! test for convergence
bStop = bTrue
For I = 1 To N
If Abs(d(I,1)) > Toler(I) Then
bStop = bFalse
Exit For
End If
Next I
If bStop = bTrue Then
PRINT "Exit due to values of Lambda * S()"
PRINT "Lamda="; Lambda
PRINT "Array S is:"
For I = 1 To N
PRINT "S(";I;")=";S(I,1);" ";
Next I
PRINT
Exit Do
End If
! exit if gradient is low
CALL CalcNorm(g, N, fNorm)
If fNorm < EPSG Then
PRINT "Exit due to G Norm"
PRINT "Norm=";fNorm
Exit Do
End If
!-------------------------------------------------
! Start elaborate process to update matrix B
!
! First calculate matrix M (stored as Mmat)
! MM1 = S in matrix form
MAT MM1 = S
! MM2 = S^T in matrix form
MAT MM2 = TRN(S)
! MM3 = g in matrix form
MAT MM3 = g
! Mmat = S * S^T
MAT Mmat = MM1 * MM2
! MM4 = S^T * g
MAT MM4 = MM2 * MM3
! calculate natrix M
MAT Mmat = (Lambda / MM4(1,1)) * Mmat
! Calculate matrix N (stored as Nmat)
! VV1 = {B] g
MAT VV1 = Bmat * g
! MM1 = VV1 in column matrix form ([B] g)
MAT MM1 = VV1
! MM2 = VV1 in Iter matrix form ([B] g)^T
MAT MM2 = TRN(VV1)
! Nmat = ([B] g) * ([B] g)^T
MAT Nmat = MM1 * MM2
! MM1 = g^T
MAT MM1 = TRN(g)
! MM2 = g
MAT MM2 = g
! MM3 = g^T [B]
MAT MM3 = MM1 * Bmat
! MM4 = g^T [B] g
MAT MM4 = MM3 * MM2
! calculate matrix N
MAT Nmat = (-1/MM4(1,1)) * Nmat
! B = B + M
MAT Bmat = Bmat + Mmat
! B = B + N
MAT Bmat = Bmat + Nmat
CALL MyFx(X, N, F)
PRINT "F = ";F;" ";
For I = 1 To N
PRINT "X(";I;")=";X(I);" ";
PRINT "g(";I;")=";g(I,1);" ";
Next I
PRINT
Loop
PRINT "********FINAL RESULTS**********"
For I = 1 To N
PRINT "X(";I;")=";X(I)
Next I
For I = 1 To N
PRINT "Gradient(";I;")=";g(I,1)
Next I
CALL MyFx(X, N, F)
PRINT "Function value = ";F
PRINT "Iterations = ";Iter
END
